Wichard Self-Locking Twisted Shackle - 10mm Diameter - 13/32" [1225W]
Wichard Self-Locking Twisted Shackle - 10mm Diameter - 13/32" [1225W] is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Orders are typically processed within 0–2 business days. Most orders will ship the same day if ordered before the cut off time of 4:00 EST M-F. Shipping Policy
30 Day Returns
30 Day Returns
30 Day Returns / 10% Restocking Fee
Full Return Policy
Wichard Self-Locking Twisted Shackle - 10mm Diameter - 13/32" ...
Wichard Self-Locking Twisted Shackle - 10mm Diameter - 13/32" [1225W] is backordered and will ship as soon as it is back in stock.
Description
Description

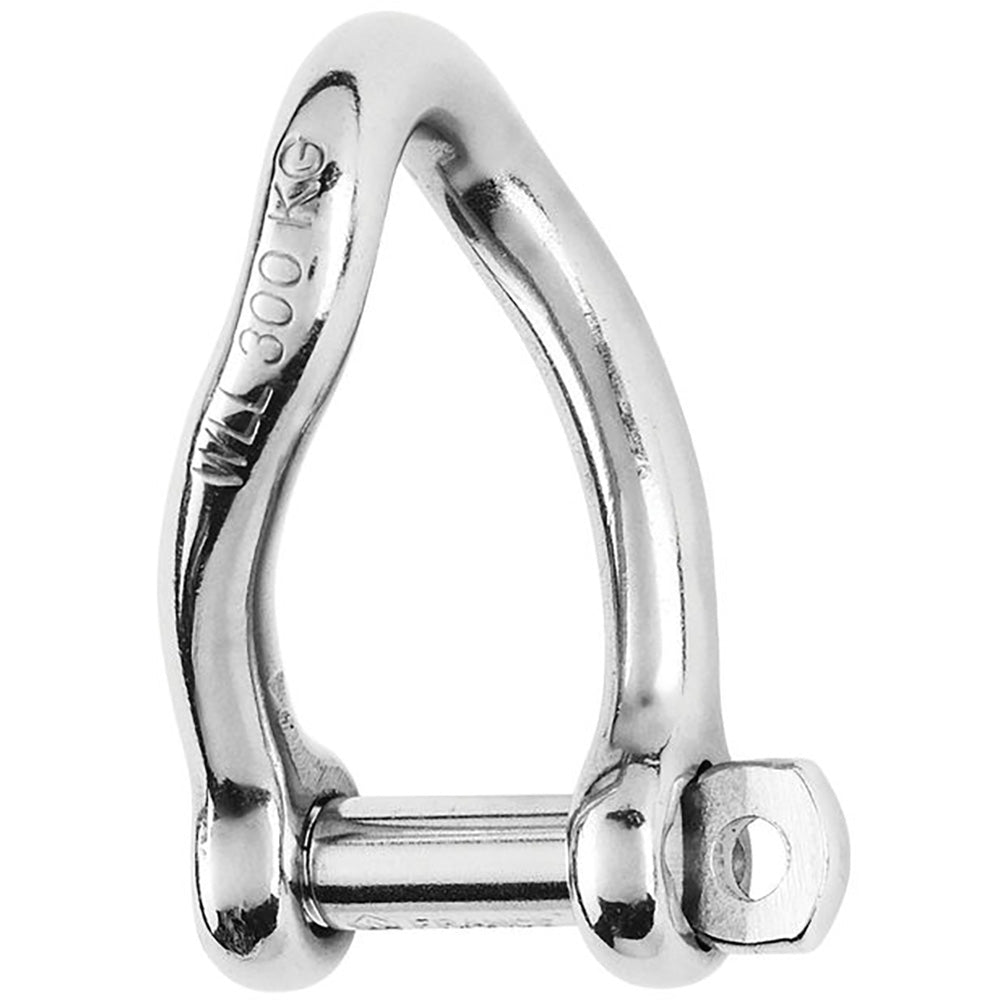

Self-Locking Twisted Shackle - Diameter 10mm - 13/32"
Features:
- Self-locking twisted shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Perfect for applications where a 90° angle twist setup is required
- Often used to attach an unarticulated part (block on a rail) or on purchases
Specifications:
- Materials: 316 stainless steel grade
- Working load: (lb) 3170 / (kg) 1440
- Breaking load: (lb) 9920 / (kg) 4500
- Weight: (lb) 0.28 / (g) 127

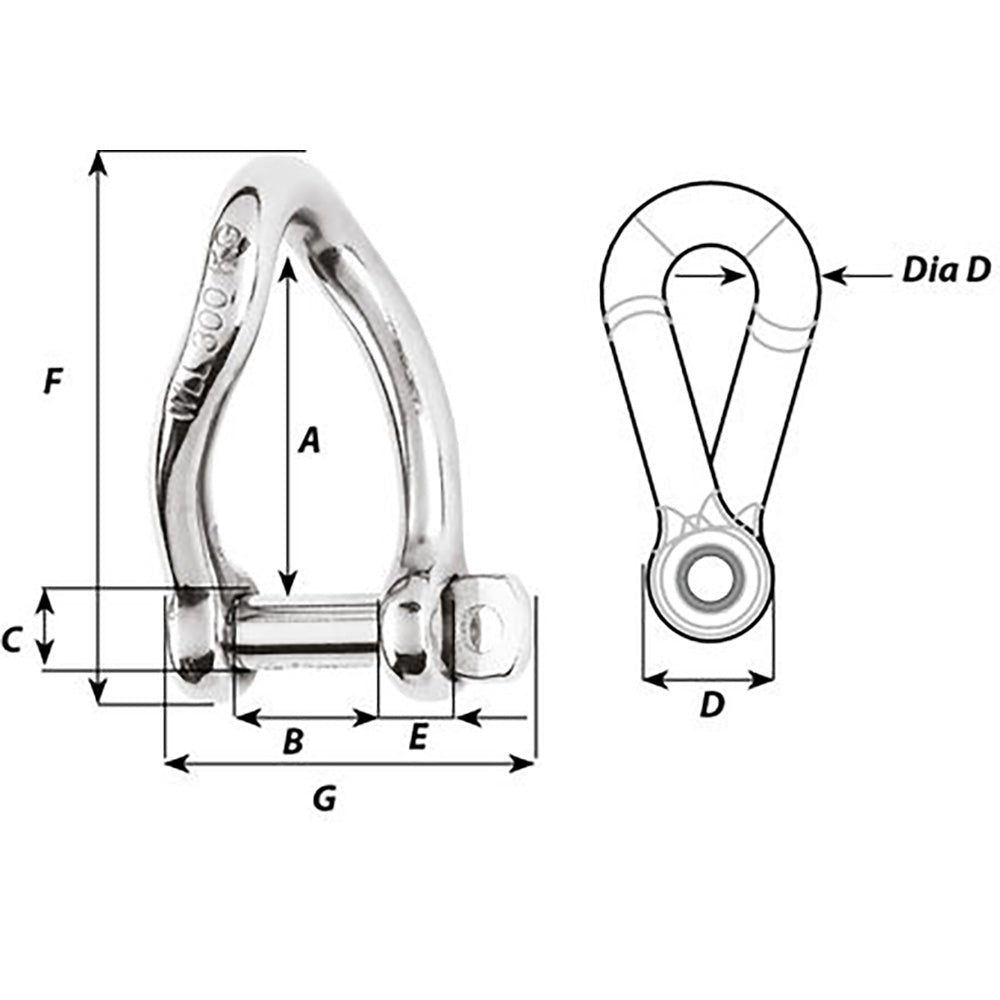

Dimensions:
- A: (inch) 1 31/32" / (mm) 50
- B: (inch) 25/32" / (mm) 20
- C: (inch) 25/64" / (mm) 10
- D: (inch) 3/4" / (mm) 19
- D diameter: (inch) 25/64" / (mm) 10
- E: (inch) 23/64" / (mm) 9
- F: (inch) 2 29/32" / (mm) 74
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Quick Guide (pdf)
