Trident Marine Stainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 4-1/8" to 4-1/2", Hose O.D. - 4.75" to 5.625" [730-4120]
Trident Marine Stainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 4-1/8" to 4-1/2", Hose O.D. - 4.75" to 5.625" [730-4120] is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Trident Marine Stainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 4-1/8" to 4-1/2", Hose O.D. - 4.75" to 5.625" [730-4120] is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description

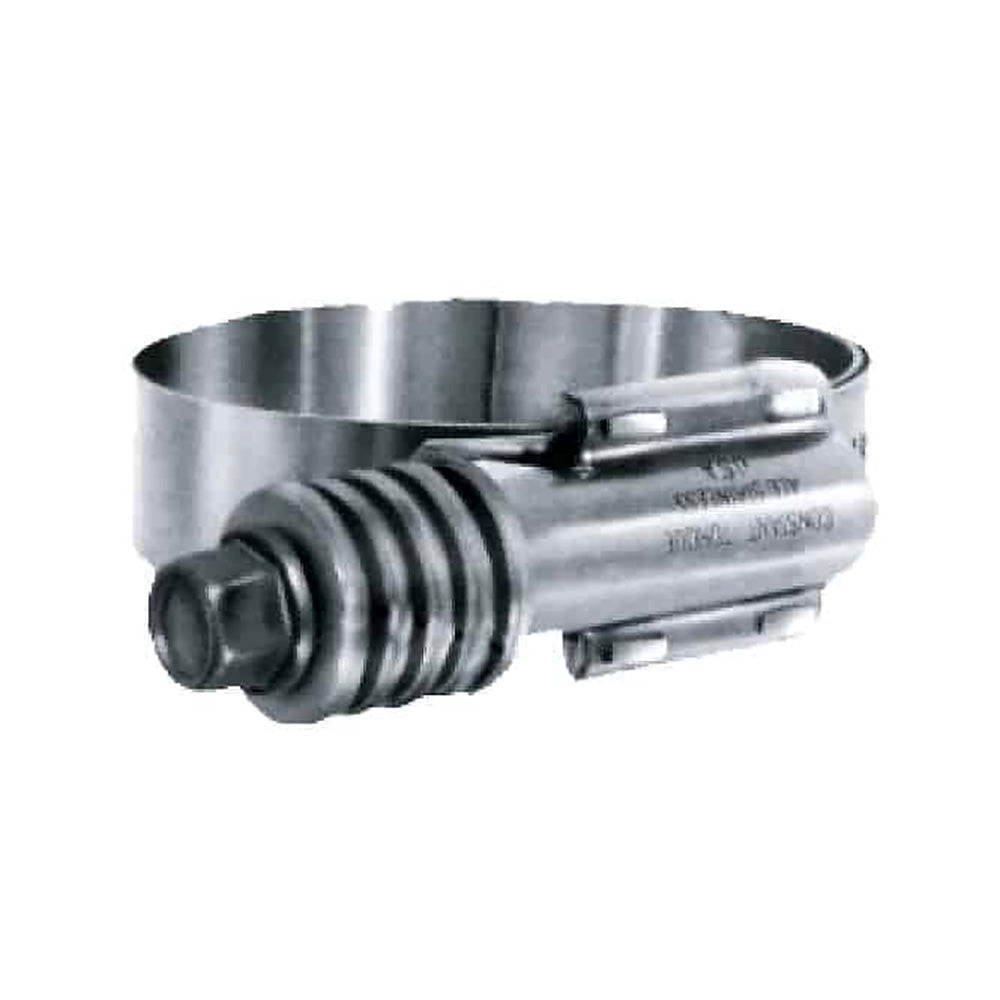

Stainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 4-1/8" to 4-1/2", Hose O.D. - 4.75" to 5.625"
Virtually all rubber hose compresses (cold flow) after installation of clamping device, resulting in an almost immediate torque loss that can exceed 80% of installation torque. Similarly, virtually all metal connections expand as a system heats up, and then contracts as the system cools. Conventional worm gear, T-bolt, and other clamps are passive, in that expansion or contraction of components cannot be compensated for with out re-tightening or loosening the clamps. This clamping system is an “active” clamping mechanism, which monitors and then compensates for the changes by actually changing diameter through a unique worm gear Belleville assembly.
Specifications:
- Hose I.D. - 4-1/8" to 4-1/2", Hose O.D. - 4.75" to 5.625"
- Recommend max. torque - smaller id. sizes up to 730-3000 - 30 to 70 in.-lbs, larger id. sizes above 730-3000 - 50 to 120 in.-lbs
Construction:
- Band & Housing: 304 Stainless Steel 5/8” Wide Band
- Bellville Spring Washers & Screw: 401 Stainless Steel
