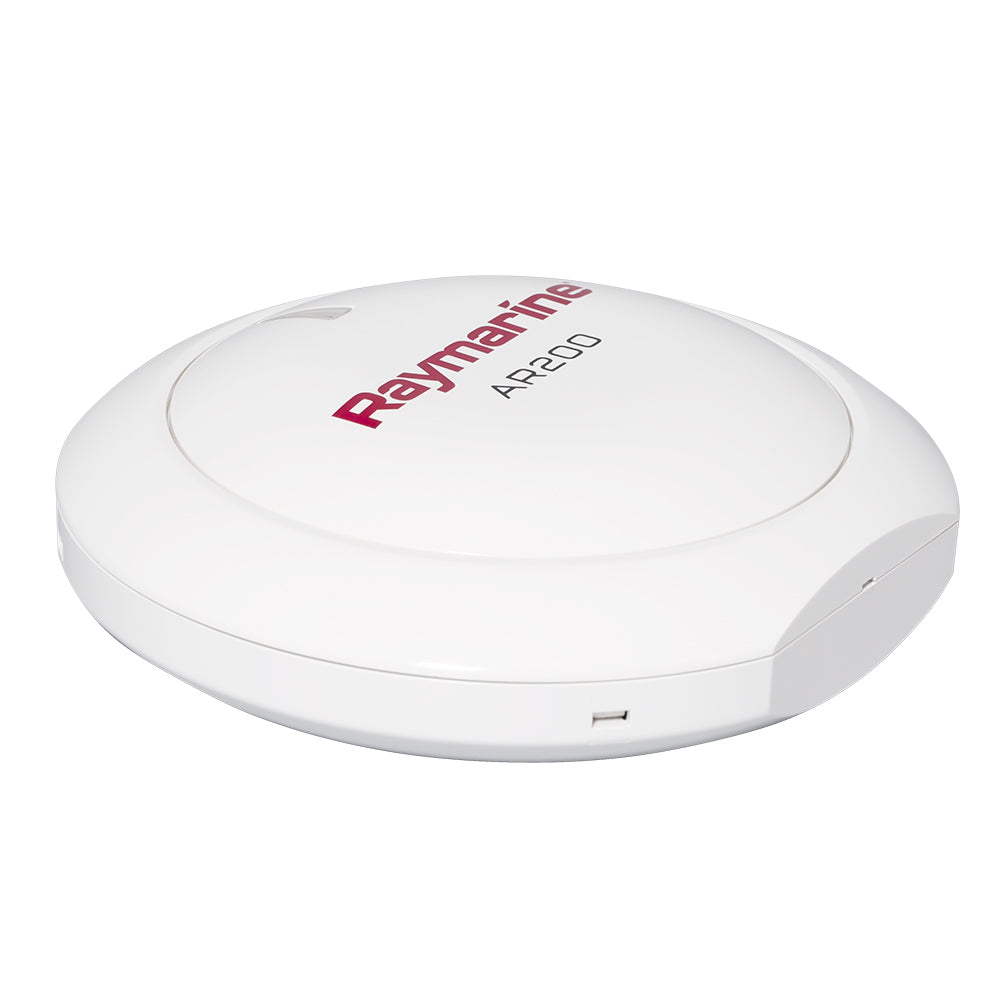

Raymarine AR200 IP Camera Stabilization Module [E70537]
Raymarine AR200 IP Camera Stabilization Module [E70537] is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Orders are typically processed within 0–2 business days. Most orders will ship the same day if ordered before the cut off time of 4:00 EST M-F. Shipping Policy
30 Day Returns
30 Day Returns
30 Day Returns / 10% Restocking Fee
Full Return Policy
Description
Description
AR200 IP Camera Stabilization Module
The AR200 is an Augmented Reality Sensor consisting of a Global Navigation Satellite Systems (GNSS) Receiver and an Attitude and Heading Reference System (AHRS) sensor. The AR200 provides position, heading, pitch and roll data to compatible Axiom MFDs. When combined with a compatible IP camera the AR200 enables use of the ClearCruise™ Augmented Reality features available on your Axiom MFD.”
Features:
- 9-axis AHRS (attitude and heading reference system) sensor
- 28-channel GPS receiver
- Fast 10Hz position updates
- Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support
- When combined with a compatible IP camera the AR200 enables the use of ClearCruise Augmented reality features available on Axiom multifunction displays
- NMEA 2000 compliant
- IPX6 / IPX7 waterproof rating
In the Box:
- Mounting trim (top)
- Small sealing ring
- AR200
- x3 large bulkhead bracket fixings (pan head pozi DIN7981-ST 3.9x22 C Z A4 Stainless steel)
- Mounting tray (bottom)
- x4 small surface mount fixings (pan head pozi DIN7981-ST 2.9x13 C Z A4 Stainless steel)
- Bulkhead (wall) bracket
- Large sealing ring
- Documentation
- 6m (19.7ft) SeaTalkNG white cable
