Quick Aleph AL3 1012 Windlass - 12V, 1000W, 8MM or 5/16" Gypsy to 5/8" Rope - Prewired Build [FSAL10120516B01]
Quick Aleph AL3 1012 Windlass - 12V, 1000W, 8MM or 5/16" Gypsy to 5/8" Rope - Prewired Build [FSAL10120516B01] is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Highlight title
Text to highlight a key feature of your product
Description
Description

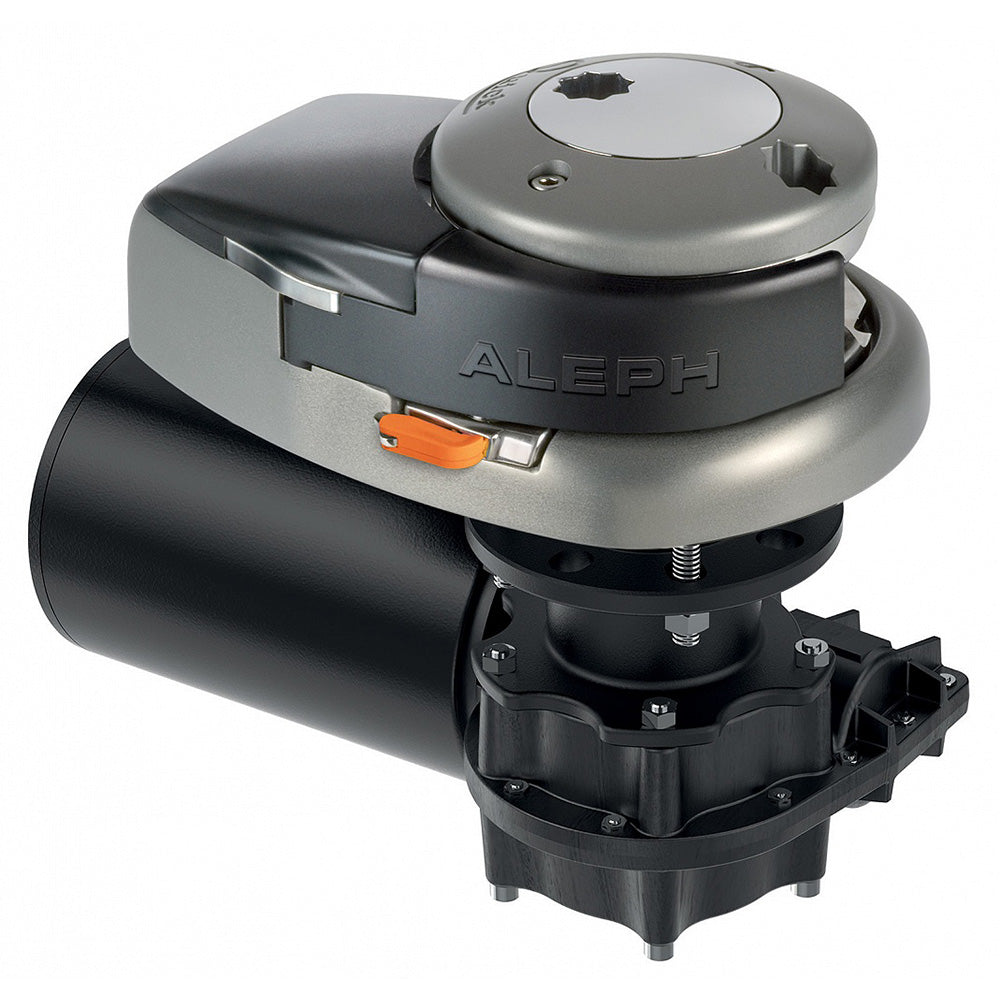

Aleph AL3 1012 Windlass - 12V, 1000W, 8MM or 5/16" Gypsy to 5/8" Rope - Prewired Build
The AL3 vertical windlass features a hard-anodized aluminum construction, an IP67 watertight motor, an inspection lid, and an emergency manual lift system, making it suitable for boats with limited deck space. The unit includes a gearbox, solenoid, clutch handle, and mounting hardware.
Features:
- For 33-46FT Boats
- Vertical windlasses
- 8mm or 5/16 gypsy
- Requires 5/8" three-strand polyester rope
- Comes with T6315-12 Solenoid
- Base in anodized aluminium with hard oxide
- With and without drum
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Emergency manual lift system
- Supplied with pressure lever
- Inspection lid
- IP67 watertight motor
- Technopolymer gearbox (700W / 1000W)
Specifications:
- Motor power - 1000 W
- Motor supply voltage - 12 V
- Maximum pull - 1000 Kg / 2204 lb
- Maximum working load - 370 kg/816 lb
- Working load - 120 kg/264 lb
- Current absorption @ working load - 140 A
- Maximum chain speed - 39,6 m/min 129.2 ft/min
- Maximum chain speed @ working load - 20,4 m/min 66.9 ft/min
- Weight - 18,6 Kg / 41 lb
