Lopolight Combined Sidelight - 1NM - Silver Housing w/FB Base [101-003-FB]
Lopolight Combined Sidelight - 1NM - Silver Housing w/FB Base [101-003-FB] is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Orders are typically processed within 0–2 business days. Most orders will ship the same day if ordered before the cut off time of 4:00 EST M-F. Shipping Policy
30 Day Returns
30 Day Returns
30 Day Returns / 10% Restocking Fee
Full Return Policy
Description
Description

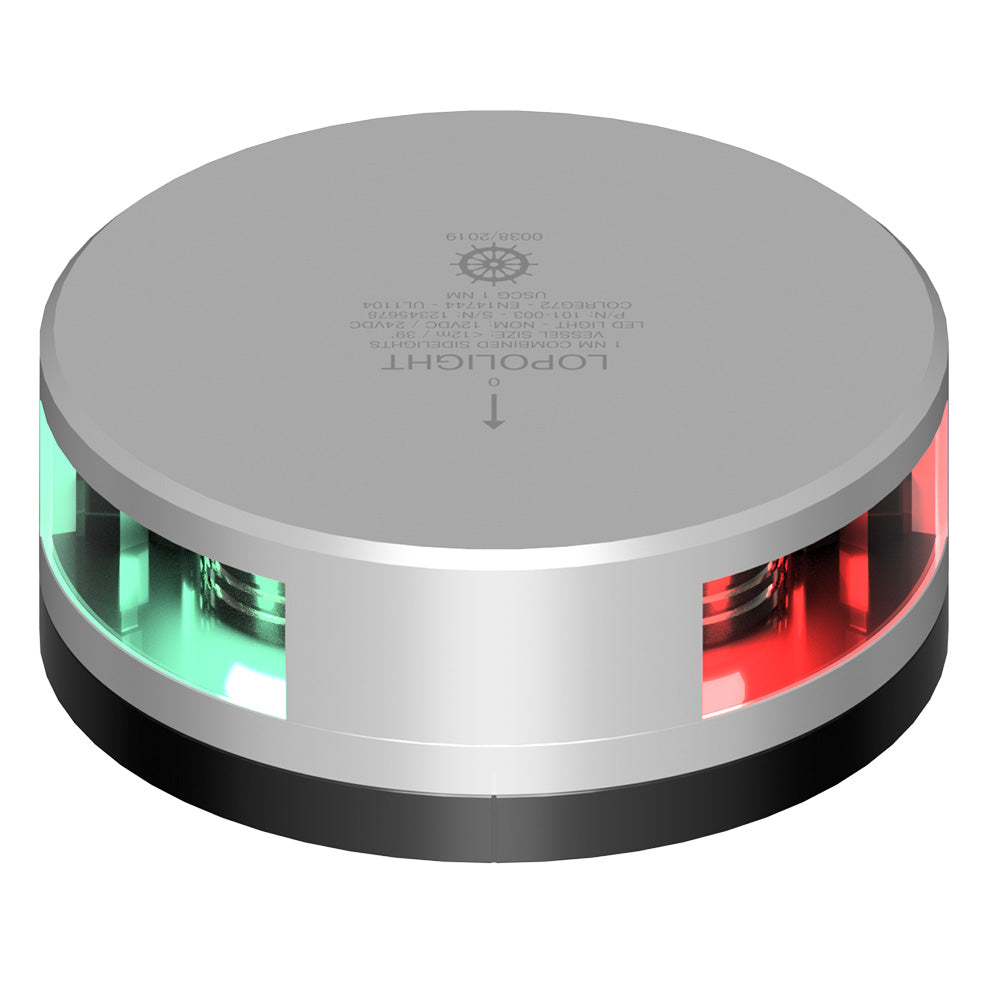

Combined Sidelight - 1NM - Silver Housing with FB Base
This navigation light is horizontally mounted and has a one-nautical mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.
Features:
- Silver anodized housing
- 2.5m cable is included
Specifications:
- Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
- Mounting: Horizontal
- EAN: 5704438042605
- Min. Feed Wire Gauge: 0.5mm2 AWG22
- Light Color: Red, green
- Visibility: 1NM
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- IP rating: IP68
- Connection: 2.5m cable
- Current Consumption (mA @ 24VDC): 48
- Current Consumption (mA @ 12VDC): 87
- Dimensions Metric: Ø92,5mm x 58mm
- Dimensions Imperial: Ø3.6" x 1.4"
- Operating Temperature: -25 degrees C to 55 degrees C
- Operating Voltage: 10-32VDC
- Power Draw (W): 1,4
- Vessel Size: Under 12 meters
Specifications:
- Housing: Silver
- Lens Color: Red/Green
- Visible Range (Miles): 1NM
- Voltage - Input Range (Volts): 10 - 32
- Box Dimensions: 4"H x 4"W x 4"L WT: 1.25 lbs
- UPC: 879343042738
Quick Guide (pdf)
