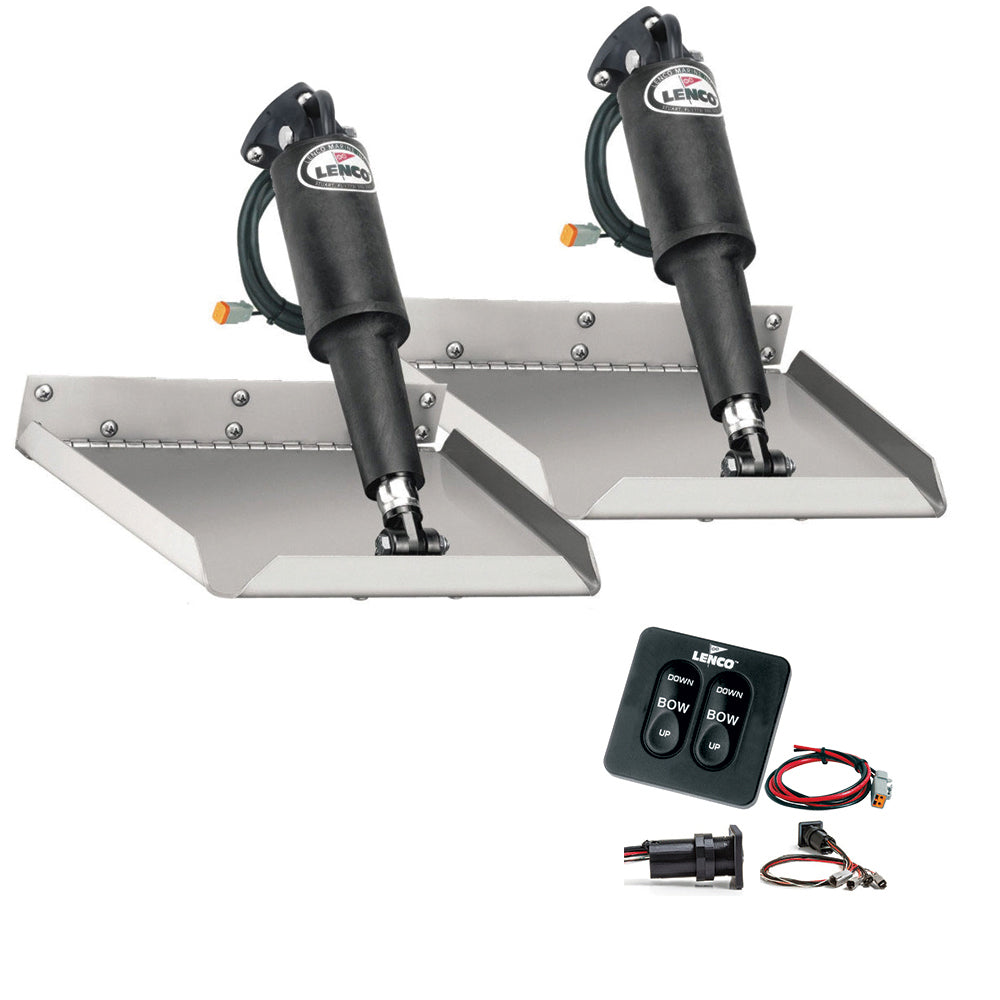

Lenco 9" x 12" Edge Mount Kit w/Standard Tactile Switch Kit [TT9X12E]

Edge Mount Trim Tab Kit with Standard Tactile Switch Kit

Lenco Electric Edge Mount Trim Tab Kits make your boat ride smoother, drier, faster, and with increased safety, whether on a small skiff or a large yacht. The Lenco ball screw design is more reliable, three times more powerful, and features an instant response, which makes it very user-friendly compared to typical hydraulics. Lenco fast-response electric actuators are fully submersible with all plug-and-play waterproof Deutsch connections. Edge Mount actuators mount at the trailing edge of the plane, requiring 4" (10.16 cm) less transom height than Lenco standard mount trim tabs.

Specifications:

• Suggested Boat Length:16'-25'
• L" x W": 9" x 12"
• Hinge Height: 2"
• Minimum Transom Height: 13.5"

Kit Contents:

• 2 each of 12-gauge stainless steel trim tab blades
• 2 each of #15054-001 actuator with 6' leads & Deutsch plugs
• 2 each of #30133-103 20' actuator extension wiring harnesses
• 2 each of #15085-001 (116) upper mounting brackets with gland seal
• 2 each of #50014-001 (119) lower mounting brackets
• 1 each of the Lenco owner's / installation manual
• All necessary stainless steel mounting hardware

Features:

• Blades: 12 Gauge Stainless Steel
• Finish: Smooth
• Class: Fuel Efficient
• Compliance: CE Certified
• Compatibility: Any Boat

Standard Tactile Switch Kit with Built-In Retractor for Single Actuator Systems 12V

Lenco Trim Tab Standard Tactile Switch Kits complete your trim tab system with totally waterproof, maintenance-free, and easy-to-install tactile switches. The switch itself is completely waterproof and has an over-molded connector to eliminate water intrusion. The standard tactile switch is built to all the same exacting standards as the indicator switches.

Kit Contents:

• Key Pad
• Control Box
• 36" Power Pigtail

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Construction: Stainless Steel
• Box Dimensions: 3"H x 5"W x 10"L WT: 19.03 lbs
