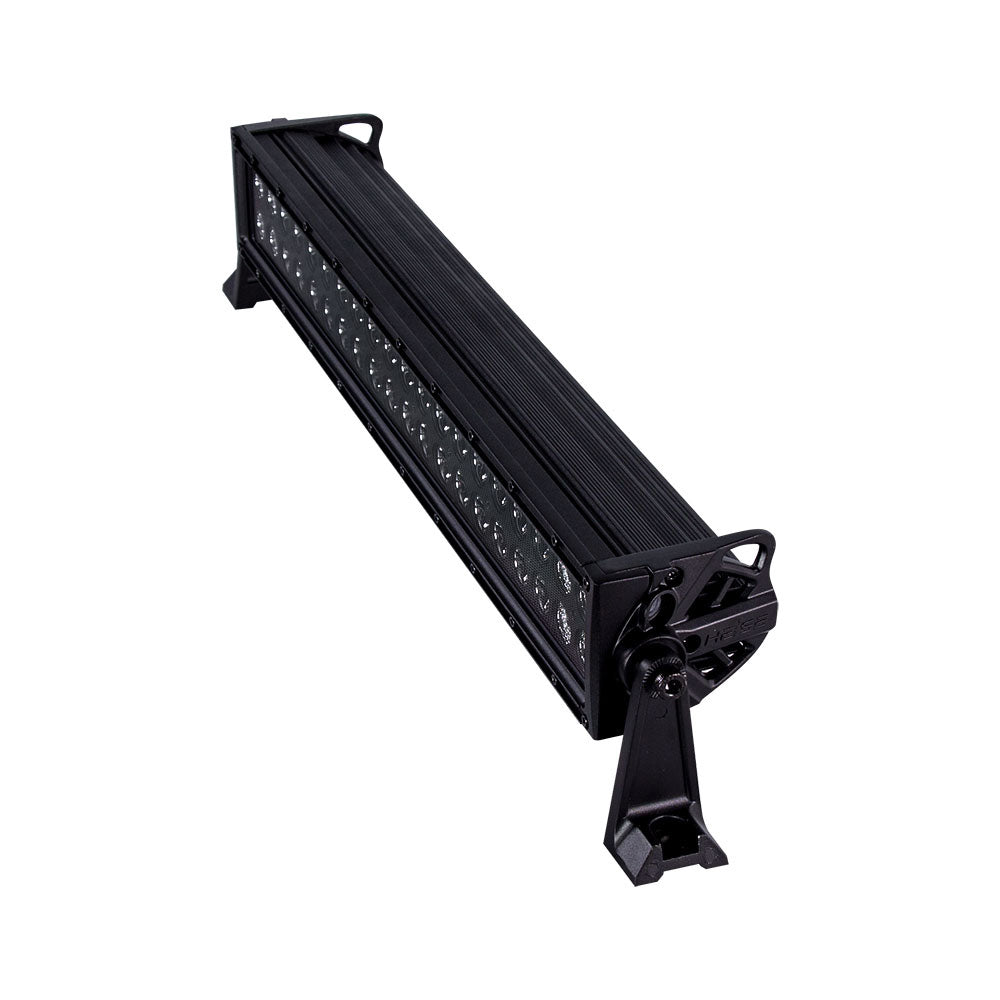

HEISE Dual Row Blackout LED Light Bar - 22" [HE-BDR22]
HEISE Dual Row Blackout LED Light Bar - 22" [HE-BDR22] is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
HEISE Dual Row Blackout LED Light Bar - 22" [HE-BDR22] is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
Dual Row Blackout LED Light Bar - 22"
SPECS
- Input Voltage: 10–30V DC
- Wattage: 120W (40–3W CREE LEDs)
- Raw Lumens: 9600
- LUX @ 10M: 655
- Color Temperature: 6000K
- Beam Pattern: Combo/Flood(90°)/Spot(8°)
CONSTRUCTION
- Housing Material: Die–cast Aluminum Housing
- Housing Color: Black
- Membrane: Gore™
- Lens Material: PC
- Mounting Bracket: Die–cast Aluminum
- Hole Dimensions:
- Brackets turned inward – 21.3125"
- Brackets turned outward – 23.75"
- Mounting Bolt Drill – .25"
- Height of Light Bar Itself: 3"
- Depth of Light Bar Itself: 3.50"
- Electronics: Integrated–Epoxy Encapsulated
- Hardware: Stainless 316
OPERATION
- Operating Temperature: –40°C to +60°C
- Current Consumption: 6.3 amps @ 13.8 volts
- IP Rating: IP67
- Protections: Reverse Polarity
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Beam Pattern: Spot-Flood Combo
- Length (Inches): 22"
- Housing: Black
- Voltage - Input Range (Volts): 12/24v
- Box Dimensions: 6"H x 6"W x 27"L WT: 7.8 lbs
- UPC: 086429312740
