Faria Platinum Series Box Set - Inboard Motors [KTF0186]

Platinum Series Box Set - Inboard Motors

Faria Beede’s Platinum Series Instruments feature spun aluminum gauge dials with custom graphics and a polished stainless steel bezel providing a rugged, elegant look.

All Platinum Series gauges feature Faria's revolutionary domed glass Fog-Resistant lens. These lenses shed condensation and resists scratching and other types of fouling common in the marine environment.

Packaged and ready for the display counter. This 6 Gauge Boxed Sets offer a complete set of gauges ready to install.

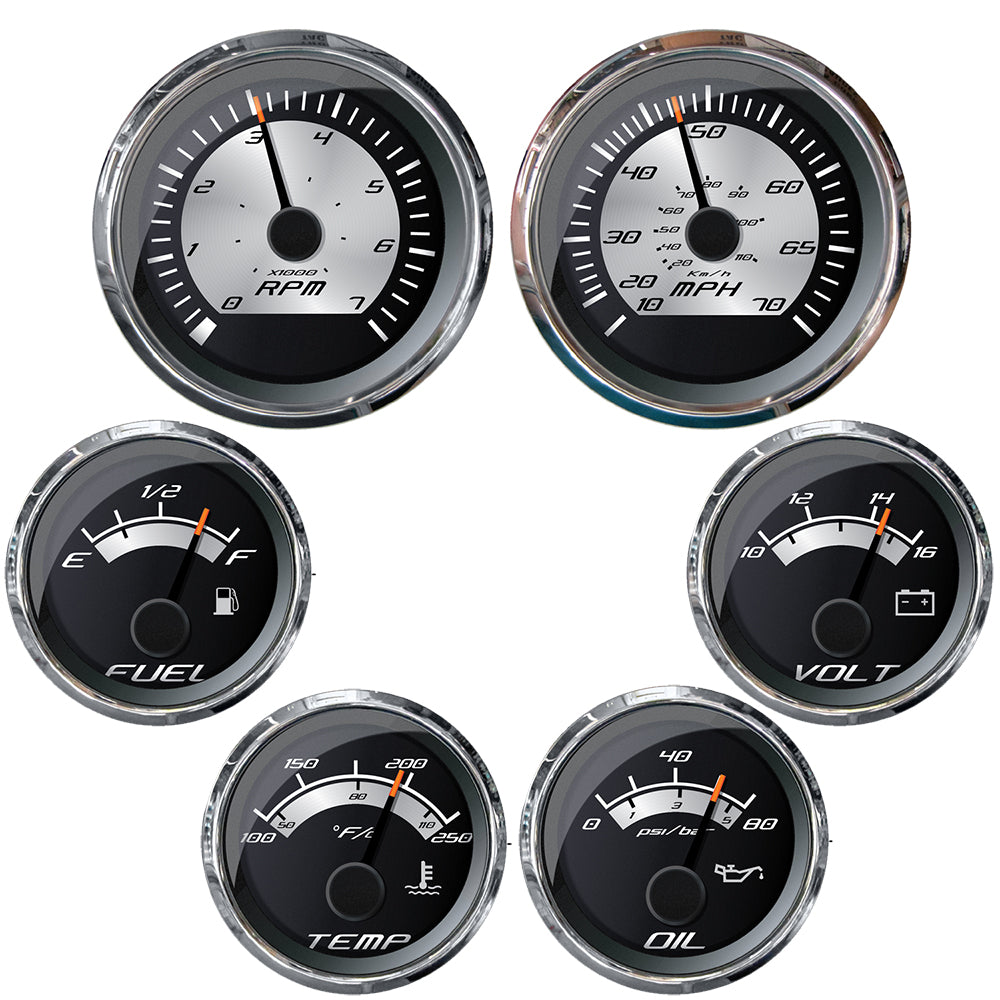

Inboard Motors Boxed Set Includes:

• Speedometer (0 to 70 MPH) (Mechanical)
• Tachometer (0 to 7000 RPM)
• Fuel Level (E-1/2-F)
• Voltmeter (10-16 VDC)
• Oil Pressure (0 to 80 PSI)
• Temperature (100 to 250° F Deg)

Specifications:

• Domed Glass Anti-fog, Scratch Resistant Lens
• Stainless Steel Bezel
• Blue LED Illuminating around the Perimeter of the Dial
• Illuminated Backlit Fire-Orange Tip Pointer

Factory P/N KTF0186

*Sold as a Box Set

**Gauge Covers not Included

Specifications:

• Voltage - Input Range (Volts): 12/24 V
• Series: Platinum
• Gauge Type: Box Set
• Gauge Size: Various
• Box Set: Yes
• Box Dimensions: 6"H x 10"W x 21"L WT: 1.5 lbs
• UPC: 759266001862
