Faria Dress White 2" Fuel Level Gauge (E-1/2-F) [13101]
Faria Dress White 2" Fuel Level Gauge (E-1/2-F) [13101] is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Orders are typically processed within 0–2 business days. Most orders will ship the same day if ordered before the cut off time of 4:00 EST M-F. Shipping Policy
30 Day Returns
30 Day Returns
30 Day Returns / 10% Restocking Fee
Full Return Policy
Faria Dress White 2" Fuel Level Gauge (E-1/2-F) [13101] is backordered and will ship as soon as it is back in stock.
Description
Description

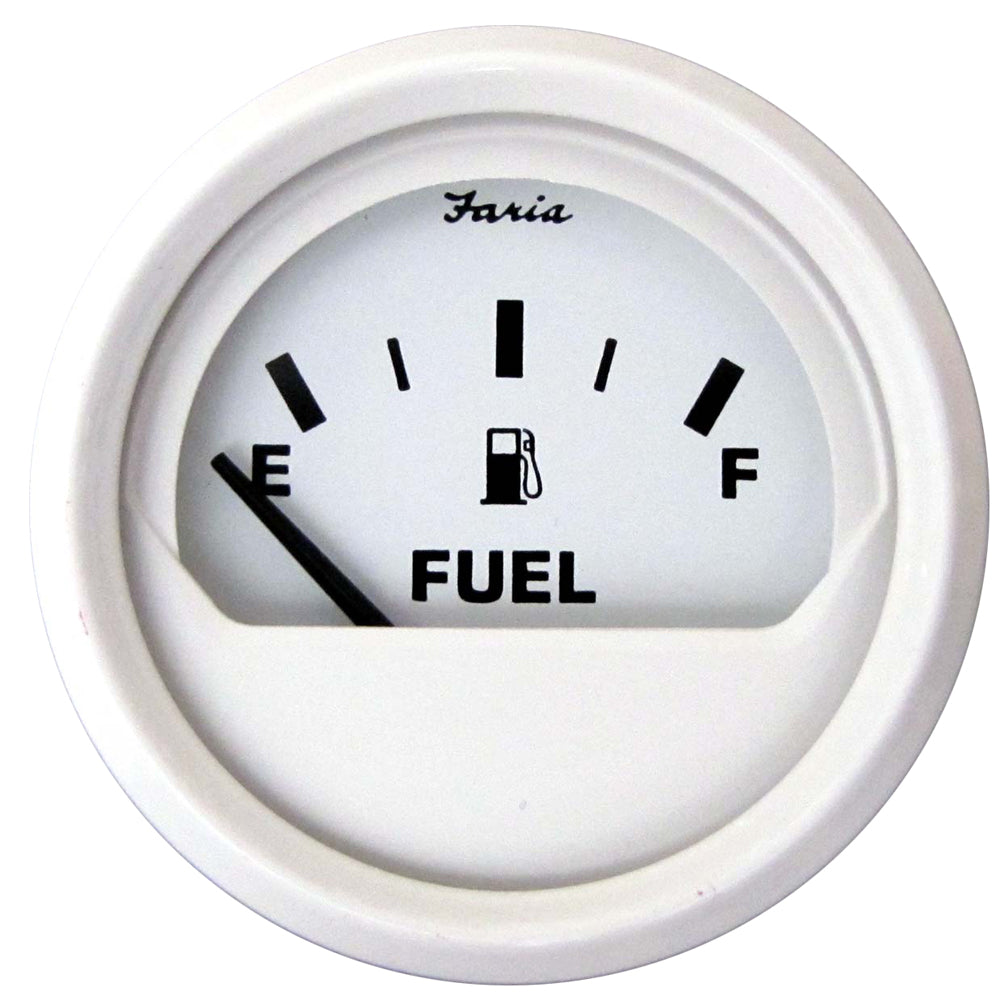

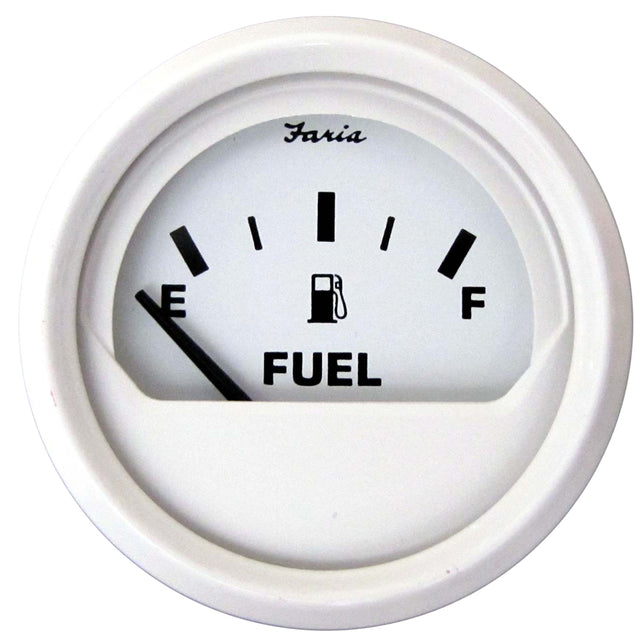

Dress White 2" Fuel Level Gauge (E-1/2-F)
Perimeter-lighted White dial with bold Black graphics, White aluminum bezel, contoured Black pointer and flat glass lens.
Fuel Level gauge operates by sending a low amperage current through the gauge's meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc...
As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the level of fuel.
2" - Hole Size: 2.0625" (53mm)
Specifications:
- 240 to 33 OHM
- Anti-scratch glass lens
- 12 VDC negative ground
- Can be adapted for 24 VDC systems
Factory P/N GP9389
*Sold as an Individual
**Gauge Cover not Included
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.Specifications:
- Gauge Type: Fuel Level
- Series: Dress White
- Voltage - Input Range (Volts): 12/24 V
- Gauge Size: 2"
- Box Set: No
- Box Dimensions: 4"H x 4"W x 5"L WT: 0.3 lbs
- UPC: 759266131019
Quick Guide (pdf)
