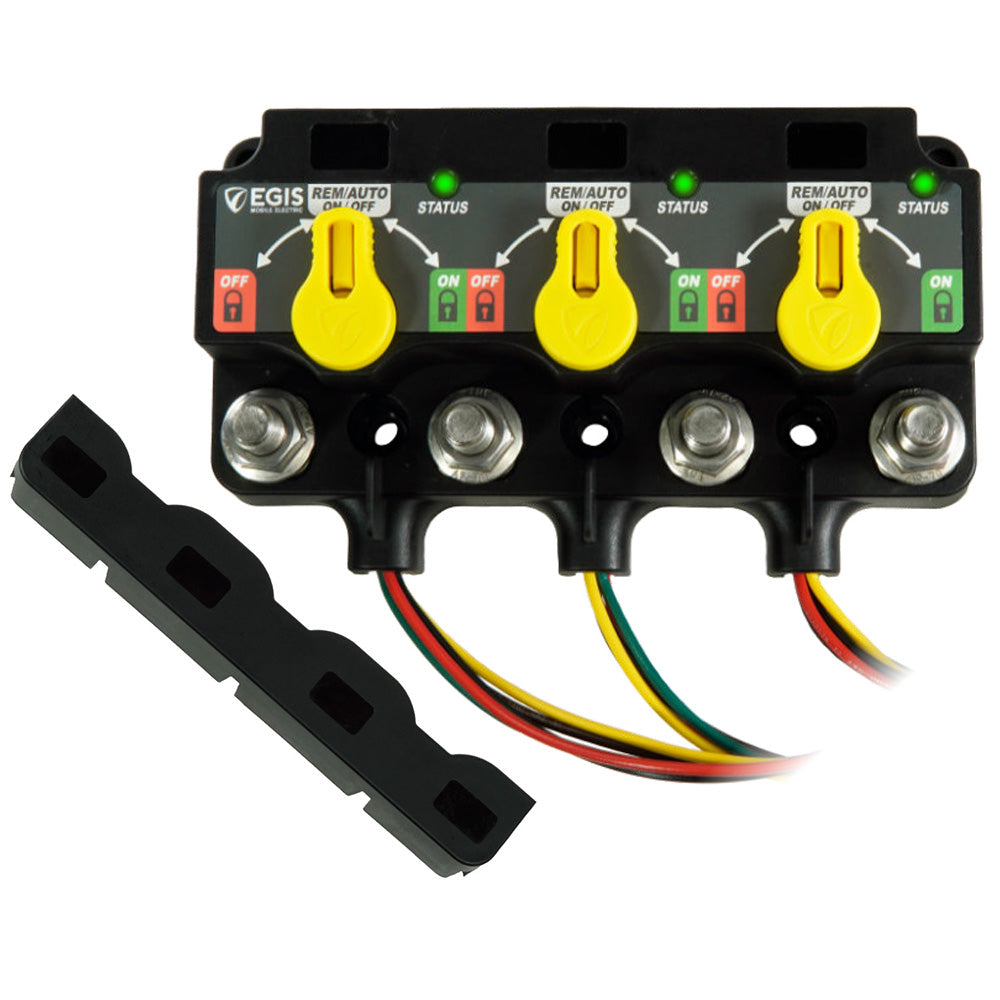

XD Flex L Triple (Relay/ACR/Relay) with Knobs - DTM
Designed for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems Where Required Charge / Discharge Voltage Settings Require Higher Available Settings
500 Amp Continuous Capability Per Relay / Extremely Compact Footprint
Available with or without Intuitive Front-Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for Servicing
Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage Disconnect
Remote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or to Allow Automatic Operation Based on Voltage Sensing
Local and Remote LED Indicators Per Relay
Mechanical-Only Battery Switch Option for One or Multiple Relay Positions
Features:
- Ultra-Low Power Draw: Lowest off-state current draw in the industry (1.3mA) combined.
- Simple & Robust Installation: Sealed Deutsch/Amphenol DTM/ATM or DT/AT connectors available. Flying wire harnesses also available.
- Flexible Application Options: Install as a Remote Battery Disconnect Switch, Voltage Sensing Relay, or Low Voltage Disconnect. On/Off trigger via external signal and/or alternator voltage sense.
- Diagnostic Feedback: Via optional external LEDs control lines and on-board LEDs for each relay
- Bulletproof Construction: Sealed unit, high-temperature materials allow mounting anywhere on the vehicle. Integrated thermal overload protection.
- Optional Manual Override provides power loss backup operation and the ability to lock OFF switched loads in order to service downstream circuits.
- Meets Stringent OEM Standards for electrical transient self-protection
- 4 Year Industry-Leading Warranty
Specifications:
- Type: Electric
- Box Dimensions: 3"H x 6"W x 8"L WT: 2.71 lbs
- UPC: 850074331698
