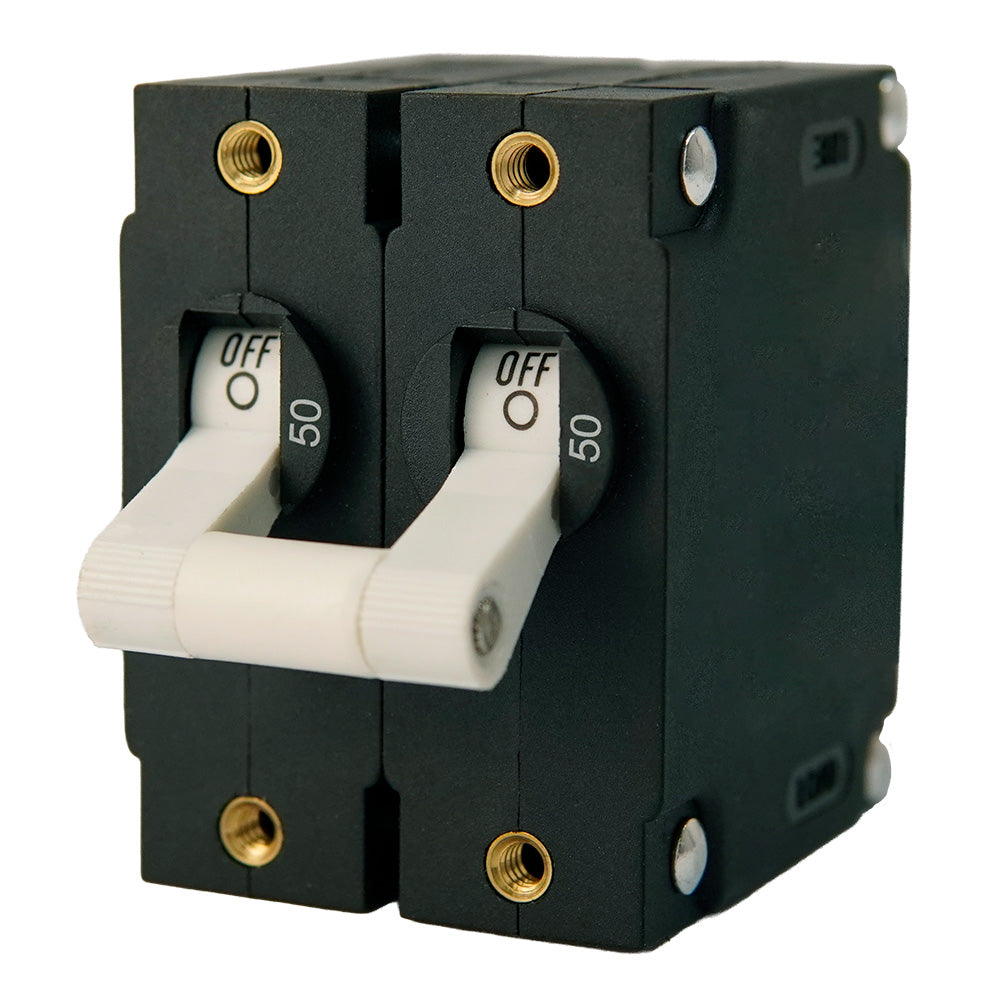

Egis A Series White Toggle Panel Mount Circuit Breaker - Dual Pole 50A [3202-50]
Egis A Series White Toggle Panel Mount Circuit Breaker - Dual Pole 50A [3202-50] is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Egis A Series White Toggle Panel Mount Circuit Breaker - Dual Pole 50A [3202-50] is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
A Series White Toggle Panel Mount Circuit Breaker - Dual Pole 50A
Features:
- Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws.
- AC & DC Rated to cover a wide range of system application needs.
- Toggle-Style Actuator for easy on/off switching control, combined with circuit protection.
- High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications.
- High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current.
- High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power.
- Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots.
Specifications:
- Amperage: 50a
- Type: Electric
- Box Dimensions: 2"H x 4"W x 4"L WT: 0.36 lbs
- UPC: 850067590927
Brochure (pdf)
