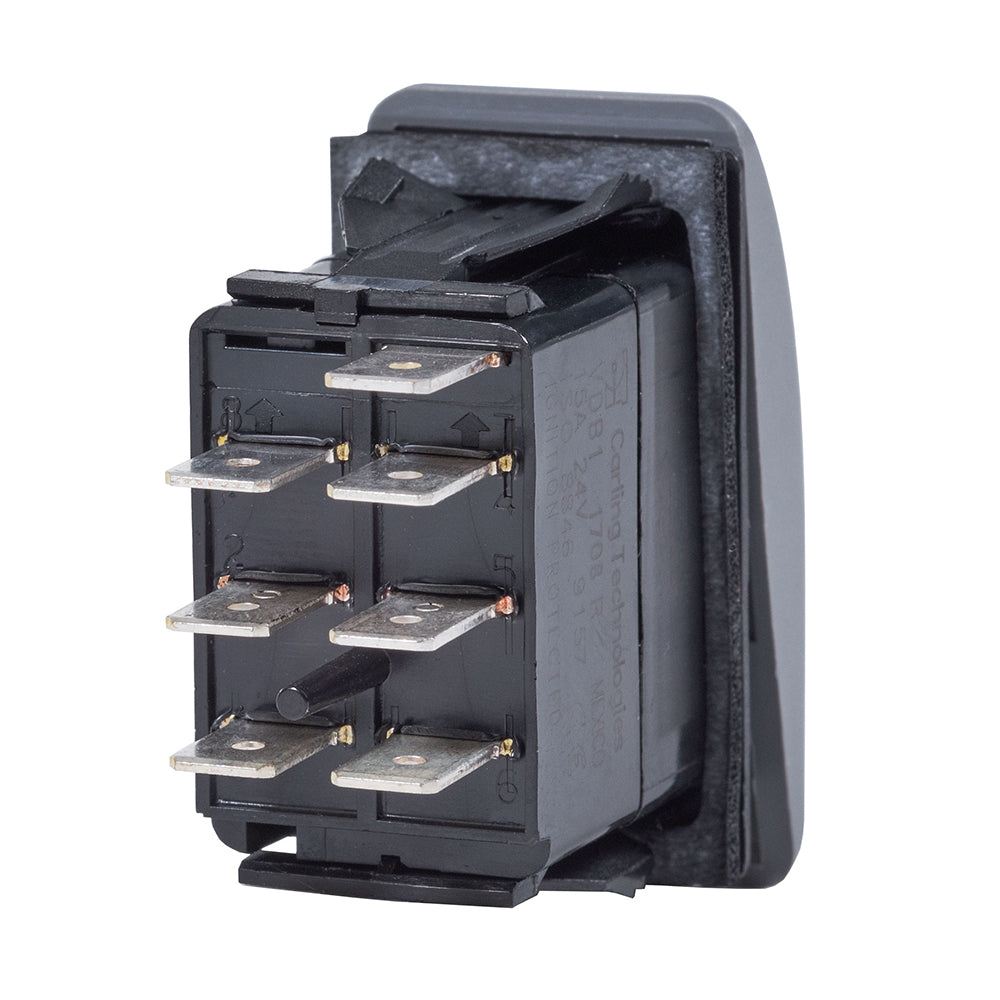

Blue Sea 7939 Contura II Switch DPDT Black - ON-ON [7939]

Contura II Switch DPDT Black - ON-ON

Vibration, shock, thermoshock, moisture and salt spray resistant
Mounts in Blue Sea Systems Contura Water Resistant Panels and Contura Switch Mounting Panels

Specifications:

• Action: ON-ON

• Pole/Throw: DPDT - Double Pole/ Double Throw

• Actuator Color: Black - Contura II

• Common Applications: Switching between shunts or current transformers with one meter

• Maximum Amperage: 20A @ 12V / 15A @ 24V

• Amperage Operating Current: 18mA (LED)

• Minimum Operating Temperature: -40° C

• Maximum Operating Temperature: 85° C

• Actuator Position to Light LED: ON

• Embedded LEDs: 2

• Lighting: LED rated 100,000 hours 1/2 half

• Seals: Internal and external gasket panel seal

• Weight: 0.09lb (0.04 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Action: ON-ON
• Color: Black
• Throw/Pole: DPDT
• Box Dimensions: 2"H x 2"W x 4"L WT: 0.2 lbs
• UPC: 632085079390
