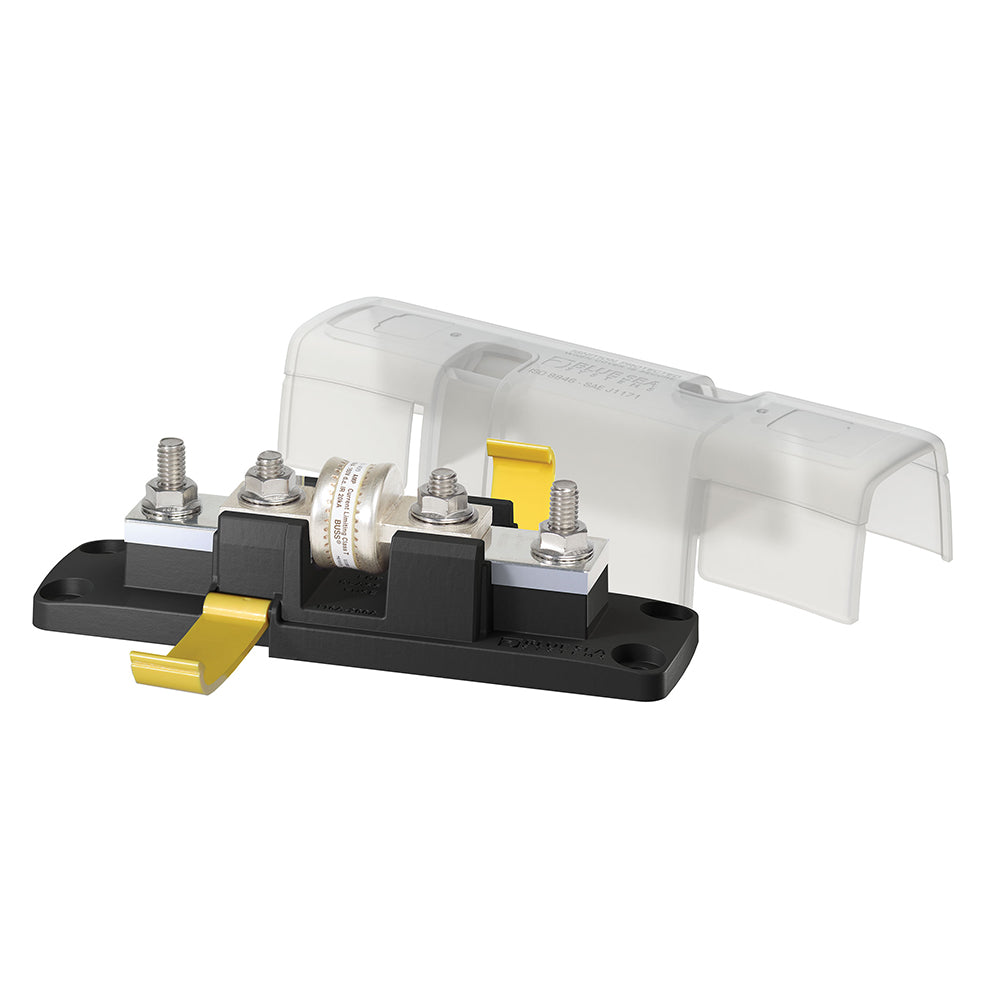

Blue Sea 5007100 Class T Fuse Block w/Insulating Cover - 110 to 200A [5007100]

Class T Fuse Block with Insulating Cover - 110 to 200A

Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics

• Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse

• Insulating cover satisfies ABYC/USCG insulation requirements

• Cover breakouts allow wire access in any direction

• Stud design ensures secure fuse mounting even with high heat

• Stainless steel studs provide resistance to corrosion and high torque

• One-piece stainless flange nuts ensure safe and secure connections

• UL 94-V0 base resists high heat

• Cable Size: Up to 4/0 AWG

• Ignition Protected: Yes

• Maximum Amperage: 200A

• Maximum Voltage: 160V DC

• Fuse Mounting Block: Tin-Plated Copper

• Terminal Stud Size: 5/16"-18 (M8)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Fuse Type: Class T
• Type: Fuse Blocks
• Box Dimensions: 3"H x 8"W x 9"L WT: 1.09 lbs
• UPC: 632085500719
