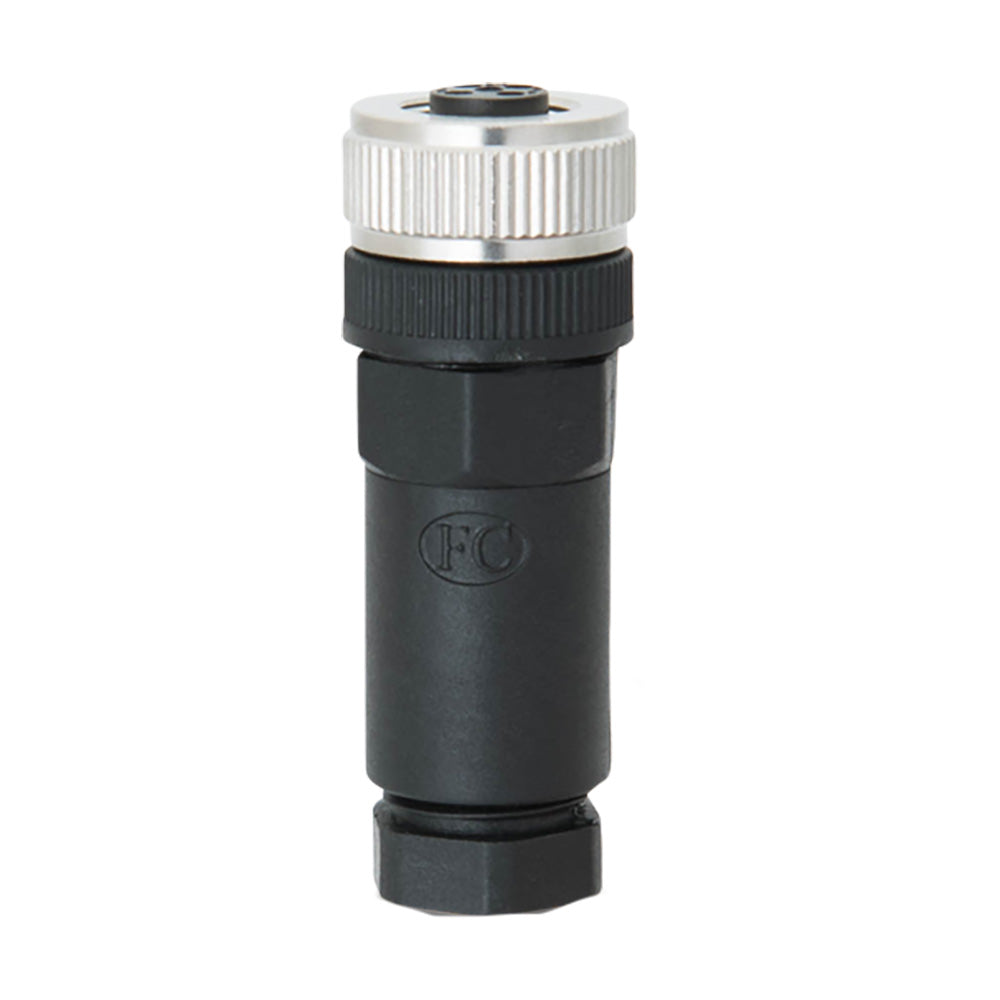

NMEA2000 Straight Micro Field Fit Connector - Female
Field-fit connectors allow full customization of your NMEA 2000 network cabling.
Male and female variants, as well as right-angle options for each, provide full flexibility and make it easy to install cable around tight bends, meaning your network can be fully customized. Actisense Field Fit Connectors allow for secure, reliable connections in any NMEA 2000 installation using Lite cable. The glands inside the connectors tighten around the cable as they are screwed together to maintain watertight integrity.
The Field Fit Connectors allow cables to be cut to any length, resulting in less excess. Right-angle options mean cables can be fitted at any angle to allow ease of installation from the desired entry point. The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.
Technical Specifications:
Electrical
- Rated Current - 4A
- Rated Voltage - 60VDC
Mechanical
- Connector Contact - Brass, gold plated
- Wire Gauge/Size - 22 AWG/0.34mm
- Contact Resistance - ≤ 5 mΩ
- Contact Polarization - Standard M12 -“A”- polarization
- Mating Thread - M12
- Connector Screw - Stainless Steel
- Sealing Gland Size - PG9/6-8mm Cable
- O-Ring Seal - Rubber, black
- Connector Insert - TPU
- Connector Body - PA+GF, black
- Insulation Resistance - ≥ 100 MΩ
- Weight - 26.5g
Approvals and Certifications
- Protection - IP67 (in locked condition)
- Ambient Temperature - -25°C to +90°C
Specifications:
- Connection Gender: Female
- Data Interface: NMEA 2000
- NMEA 2000 Connectors: Field Connectors
- Box Dimensions: 1"H x 1"W x 3"L WT: 0.1 lbs
- UPC: 5060998710058
