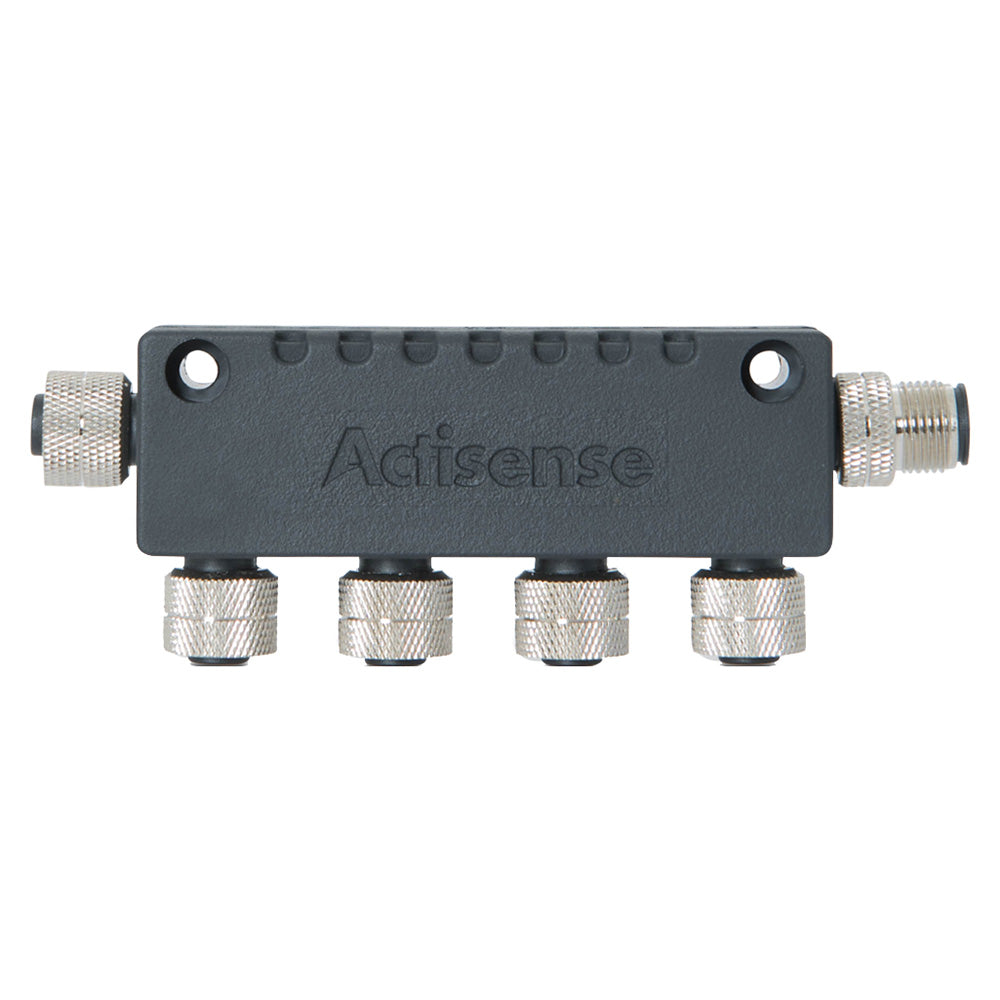

N2K Micro 4 Way T-Piece
The 4 Way T-Piece from Actisense saves you time, space and money on your NMEA 2000® installation.
The Actisense 4 Way T-Piece is for use where multiple drops or ‘ports’ are required from the NMEA 2000 backbone. It’s as quick and easy to install as a single T-Piece, uses less space than two individual T-pieces and costs less than four.
The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.
Features:
- NMEA 2000 Approved
- RoHS Compliant
Technical Specifications:
Electrical
- Rated Current - 4A
- Rated Voltage - 60V DC
Mechanical
- Male Contact - Brass, gold plated
- Female Contact - Phosphor bronze, gold plated
- Contact Carrier - PA66 (30% Glass filled), black
- Contact Polarization - Standard M12 -“A”- polarization
- Mating Thread - M12
- Screw Cap - Brass, nickel plated
- O-Ring Seal - Rubber, Black
- Housing - TPU, flame retardant to UL94V-0, Halogen Free
- Internal Housing Shield - Copper Foil
- Weight - 105g
Approvals and Certifications
- Protection - IP67 (when mated)
- Operating Temperature - -20°C to +70°C
- Storage Temperature - -40°C to +85°C
Specifications:
- Data Interface: NMEA 2000
- NMEA 2000 Connectors: Tee Connectors
- Box Dimensions: 2"H x 3"W x 5"L WT: 0.25 lbs
- UPC: 5060998710010
Brochure (pdf)
